50x~1200x High Resolution Digital Microscope with Screen Monitor Polarization Filter
PRODUCT DESCRIPTION
Main Features
* High resolution: real 5MP resolution sensor, and up to 12MP resolution by digital zoom.
* High magnification: real 250x and up to 1200x by digital zoom.
* Polarizer build in: allows to reduce reflection, very usefual for observing objects with shiny surface like diamond/ jewelry/metal etc.,
Quick Details
Toproview DM042 is built-in 4.3 inch LCD screen, with assembled adjustable polarizer for reflective object. Support HDMI & TV output, provide user the larger and clear visual experience. Also support USB output for PC connection and to work measurement software.
Different from other LCD digital microscope in the market, LCD digital microscope built-in polarizer switch, do not need extra light filling to the reflection on observation surface, which will make the working more convenient and more efficent.
LCD DIGITAL MICROSCOPE SPECIFICATIONS
| MODEL | Model Name | DM042 |
| | Connection | USB 2.0 to PC/HDMI port to monitor/TV port to monitor |
| OPTICS | Polarizer | Yes |
| | Magnification | Real 10x~250x(based on 21 inch Display) |
| | Lens type | Optical glass |
| | Focus range | Manual focus 0~110mm |
| | Illumination | 8 adjustable white LED |
| SENSOR | Sensor type | CMOS |
| | Size | 5 megapixel |
| | Resolution | 2590*1944 |
| | Frame rate | 25 fps at 5MP output;
35 fps at 2MP output |
| FEATURES | Software | DigiCapture Pro for
Windows/MacOS |
| | Measurement function | Yes |
| | Certification | CE/FCC/RoHS |
| PHYSICAL | Dimensions | 18*34*30cm |
| | Gross weight | 0.2kg |
| | Stand | Comes with metal stand |

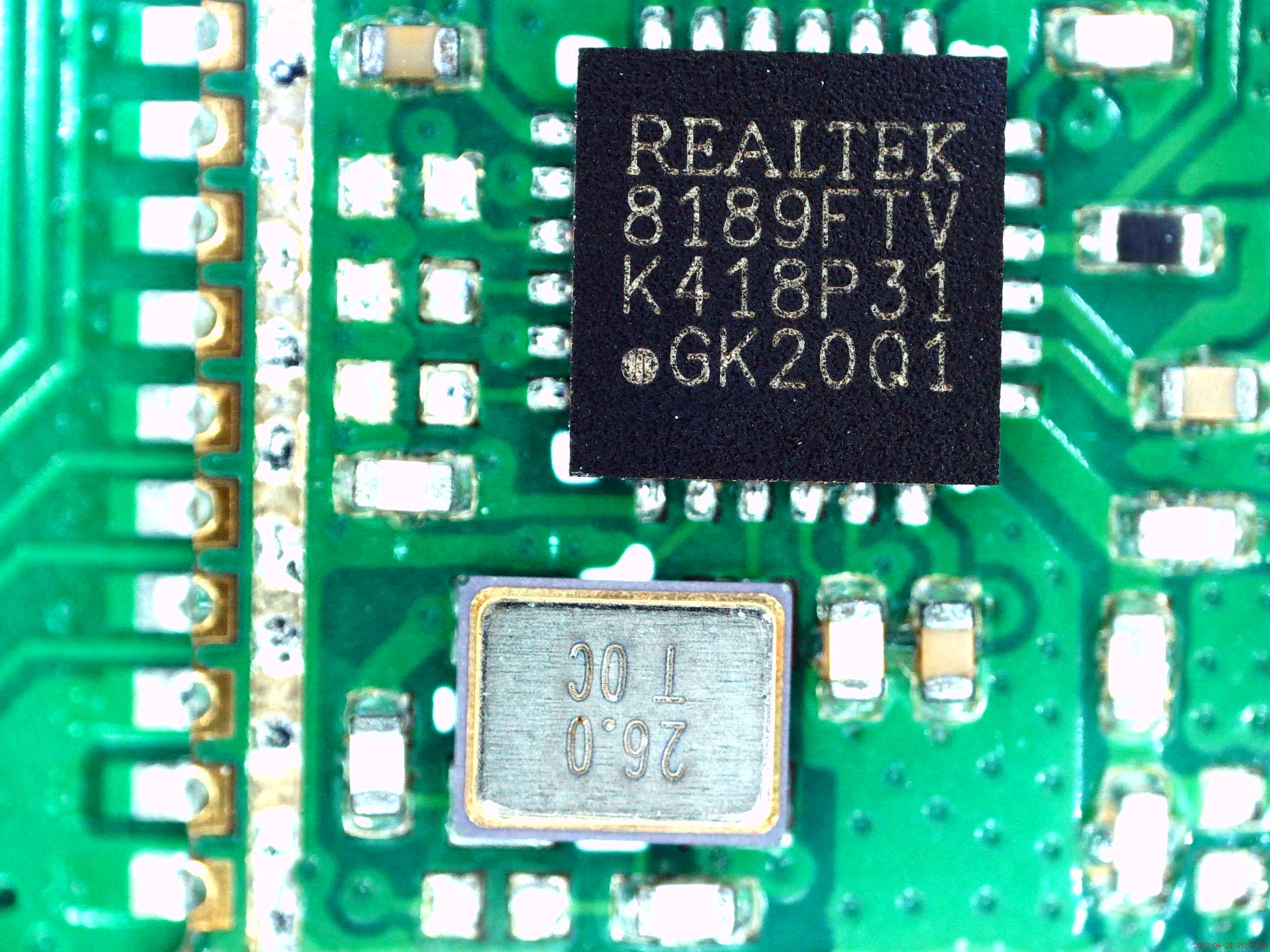

PHOTO taken by Toproview DM042 with after adjusting polarizer

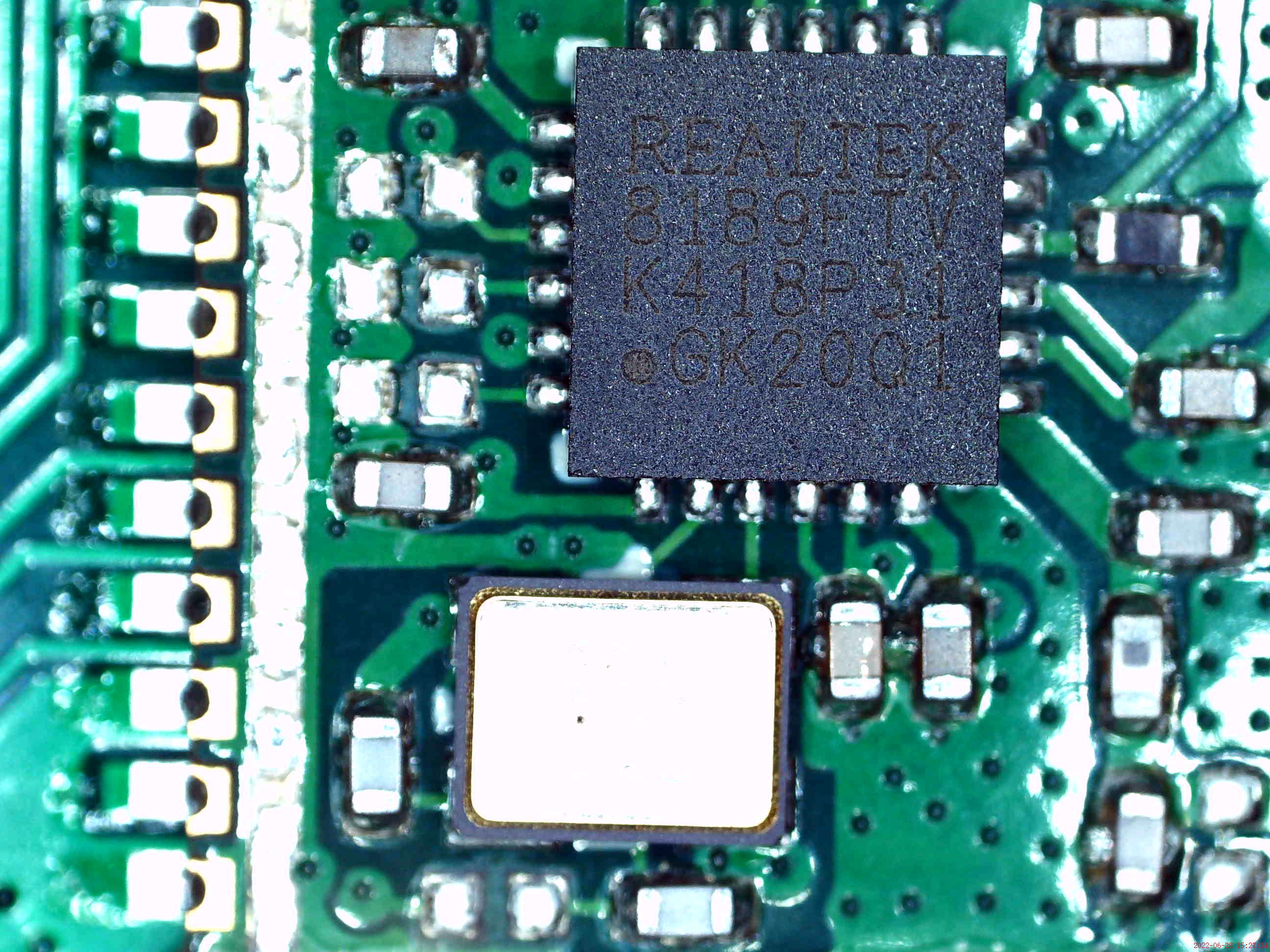

PHOTO taken by Toproview DM042 with before adjusting polarizer
Applications
• Jewelry and Diamond Identify / Watch Repairing / Mineralogy / Material Science/ Education
• Hobbies: Coins & Stamps Collection / Antiques / Art restoration / Culture preservation
• Industry: PCB Repairing / Manufacturing / Engineering integration / Quality Control / Assembly / Printing
FAQ
Q: Are you manufacturer?
A: Yes, we are designer and manufacturer for digital microscope for many years!
Q: Do you accept small order?
A: Yes, Sample order available. we can also provide drop ship service.
